6400VA 3ph catenary DC/AC inverter

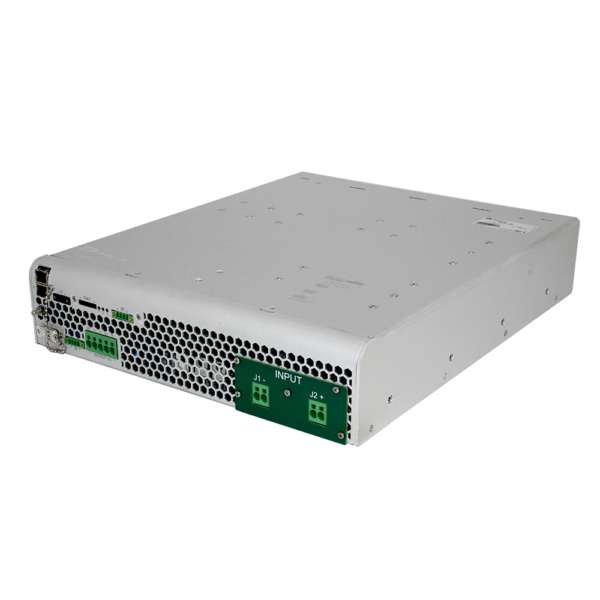

As part of the new Spark Series, which includes solutions designed to get power straight from the catenary line, the new OVX-6400 is a 6400VA 3 phase sine wave DC/AC inverter that meets EN612587-1 and EN50155 standards among others. The OVX-6400 is designed not only to work within 400 to 900V input voltage range but also to withstand surges and over-voltages as described in EN50124-2.

Configurable power & soft start to supply electricity to a locomotive, streetcar, or light rail vehicle. In addition to the wide continuous input range, the OVX-6400 includes an innovative active catenary filter that protects itself from surges up to 3kW.

The unit allows:

• Adjustable output frequency
• Adjustable output voltage
• Input voltage according to: EN50163:2006 & EN50124-2:2017
• High input-output isolation 5400Vrms
• Remote off opto-coupled
• Alarm by isolated relay contacts
• Configurable input: Reverse or Mid power
• Remote control via RS232
• CAN BUS
• Railway applications according to EN61287-1
• Fire and smoke: EN45545-2

The OVX-6400 will be available during 2025.

Product warranty

5 years
