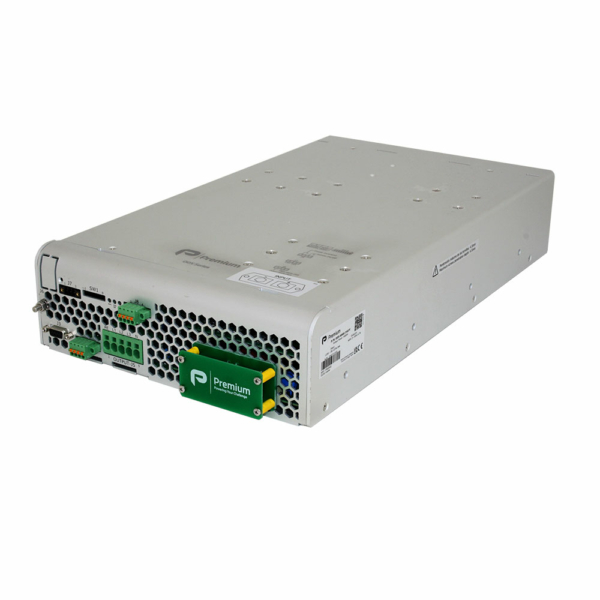

At Premium, we are constantly searching for technologies that bring new performance to each of our devices. The ODX-6000 industrial and railway inverters use silicon carbide (SiC), a technology that offers high density and up to 94.3% efficiency. The unit can operate at high temperature, high power and high frequency. Avoiding potential energy loss is key, and this new series of 6000W pure sine wave 3ph DC/AC inverters are also a guarantee of maximum optimization of the electrical flow.
The unit allows:
Looking for an ODX-6000 with different technical features? Tell us your challenge and we’ll make it ours from now on!
3 years for industrial version
5 years for railway version
| ODX-6000 | 24VDC 16.8 … 30V | 48VDC 33.6 … 60V | 72VDC 50.4 … 90V | 110VDC 77 … 138V |
|---|---|---|---|---|
| 400Vac | ODX-6000-7502 / 3500 W | ODX-6000-7505 / 6000 W | ODX-6000-7506 / 6000 W | ODX-6000-7507 / 6000 W |
– Multiple input voltage versions
– Parallelable output (up to 5 units, 30kW)
– Output voltage configurable from 70 to 400Vac
– Output frequency configurable from 5 to 75 Hz
– High input-output isolation (3000Vrms)
– Remote control via RS232
– CAN BUS optional
– High power density
– Input / Output alarms
– 5s. peak power
– Up to 94.3% efficiency
– Programmable ramp-up behavior for motor soft startup
– Low THD Total Harmonics Distortion (<2%)
Solutions designed for the industrial and railway sector require extremely reliable technological concepts. The new ODX-6000 three-phase DC/AC inverter guarantees these very high standards in terms of accuracy, performance, safety and strict regulatory compliance.
The ODX-6000 consists of 6000W pure sinewave inverters with multiple input-output voltage combinations. In addition, it stands out for its small size, high power density and efficiency. It allows up to 5 parallelizable units, which can add up to 30kW, making it a unique solution in the market.
The ODX-6000 is equipped with a maximum average power protection as well as maximum output peak current protection, an indispensable technical detail to protect the semiconductors even when an output short-circuit occurs. It also features a disable function for input under-voltage, which allows protecting the batteries from harmful discharges.
High isolation, adjustable parameters through RS-232 and CAN BUS, isolated alarm and remote control through optocouplers and relay contacts, among other technical parameters, make the ODX-6000 a reliable and dynamic solution aimed at industry and high speed.
Creating safe products that strictly comply with regulations is a priority for Premium. The ODX-6000 industrial and railway inverters comply with European directives and industrial EN62368-1. Premium also complies with the standards and technical specifications regarding safety, emissions and compatibility for railway applications such as EN50155 and fire and smoke EN45545-2.
Designing robust products, suitable for responding to market demands, is key for Premium. But we also make sure to enable adjustments. Tell us your challenge and we’ll make it ours from now on!
