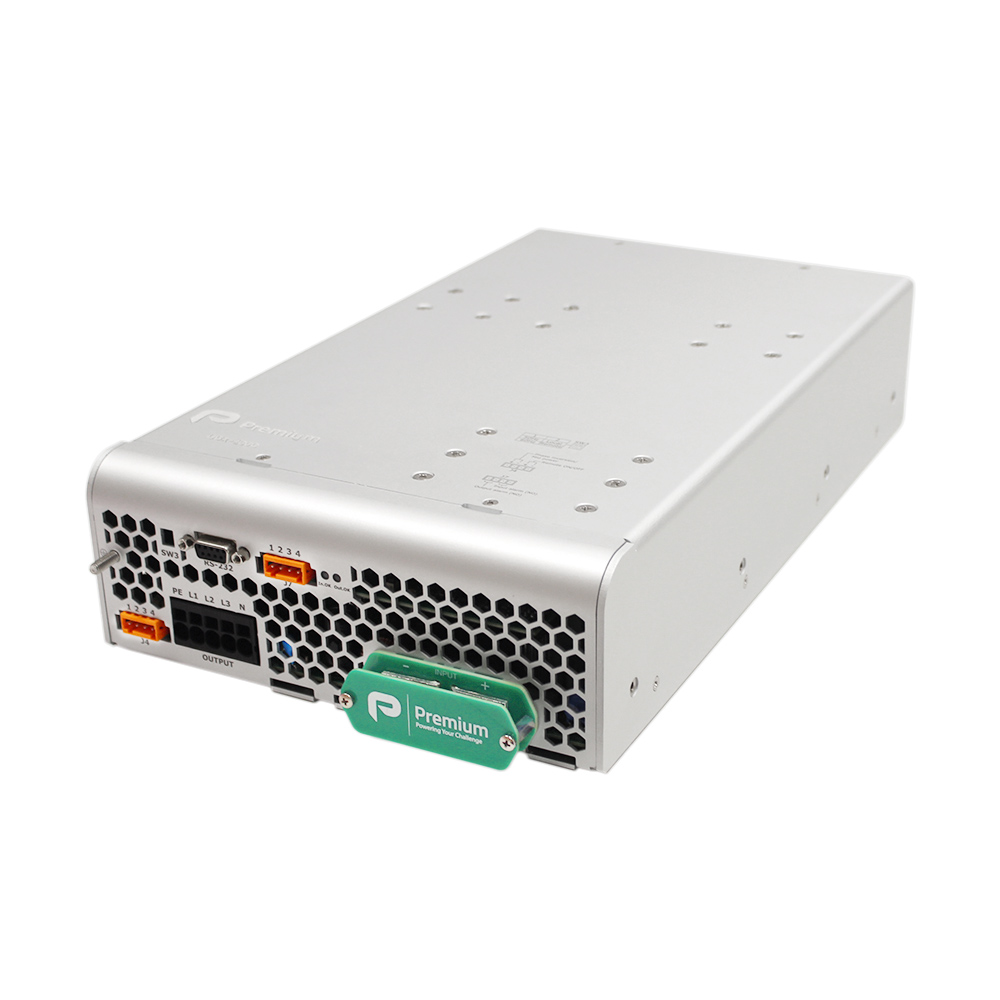

The ODX-3000 is a three phase 3000VA DC/AC inverter available both for a wide range of industrial and railway applications (under 50155 standard). It offers true sine wave output voltage, high power density and it is suitable to work under harsh environment conditions while optimizing efficiency.

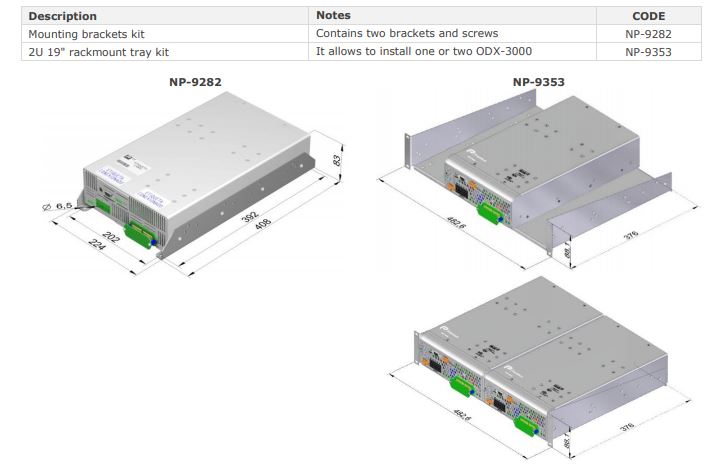

The ODX-3000 series delivers up to 3000W at 230Vac and 400Vac and offers a great variety of input-output combinations while not compromising performance. It has been designed for chassis mounting and a rackmount kit is available as well. Cooling takes place through an internal fan and the series offers up to 92% efficiency. Parameters can be set and monitored via RS232 through the PAM Tool available with all models.
At Premium we offer the possibility to modify the ODX-3000 DC/AC inverter to each project needs to make it the best solution for each application. Flexibility and customization is our standard, so don’t hesitate to contact us to tell us about your project.
3 years for industrial version
5 years for railway version
ACI-3000 Inrush current limting
| ODX-3000 | 24VDC 16.8 … 30V | 36VDC 25.2 … 45V | 48VDC 33.6 … 60V | 72VDC 50.4 … 90V | 110VDC 77 … 138V |
|---|---|---|---|---|---|
| 230Vac | ODX-3000-7413 / 2400W | Available upon request / Disponible bajo petición | Available upon request / Disponible bajo petición | Available upon request / Disponible bajo petición | ODX-3000-7417 / 3000W |
| 400Vac | ODX-3000-7403 / 2400W | ODX-3000-7404* / Check availability | ODX-3000-7405 / 3000W | ODX-3000-7406 / 3000W | ODX-3000-7407 / 3000W |
– Sine wave output voltage
– Suitable for motors control
– Selectable output frequency: 50/60Hz
– Adjustable output voltage
– High input-output isolation 3000Vrms
– Remote inhibit
– Reverse phase
– Remote control via RS232
– Alarm by isolated relay contacts
– Remote off opto-coupled
– Optional railway version EN50155
– Fire and smoke: EN45545-2 approved
– Efficiency up to 92%
The input and output are galvanically isolated and the status of the input and output voltage can be monitored through the contacts of two separate solid state relays. The ODX-3000 inverter features maximum average power protection as well as maximum output peak current protection. It also features a disable function for input undervoltage, which protects the batteries from harmful discharges.
Premium manufactures all units in Barcelona under strict quality controls.
ACI-3000: inrush current limiting accessory with active protection against reverse polarity
