Quick Vision
Terminal options:
Spring clamp terminal
DIN 41612 H15

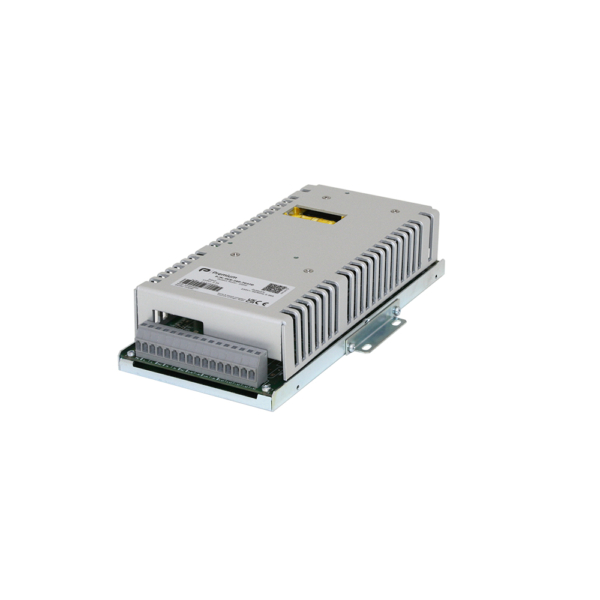

High power Industrial and Railway 260VA DC/AC Inverters
OCS-260
A High power Railway & Industrial 260VA DC/AC Inverter, the OCS-260 series is composed of sinusoidal inverters of up to 260VA apparent power and is presented in a very compact format. We have the rail version (EN50155) and offer multiple mounting options.
KEY FEATURES
- Sine wave output voltage
- Selectable output frequency: 50/60Hz
- Adjustable output voltage
- Output failure alarm
- Remote inhibit
- High input-output isolation 3000Vrms
- Optional railway version EN50155
- Fire and smoke: EN45545-2 approved
- Efficiency up to 90%
PRODUCT WARRANTY
3 years for Industrial version
5 years for Railway version
SKU: OCS-260
Category: DC/AC Inverters High-Density Power
Tags: 260VA, dc/ac inverters, industrial inverters, railway
| OCS-260 | 12VDC 9.5 … 15V | 24VDC 16.8 … 30V | 36VDC 25.2 … 45V | 48VDC 33.6 … 60V | 72VDC 50.4 … 90V | 110VDC 77 … 138V |
|---|---|---|---|---|---|---|
| 230Vac | OCS-260-7031 - 180W | OCS-260-7033 - 180W | OCS-260-7034 - 200W | OCS-260-7035 - 220W / Available upon request | OCS-260-7036 - 220W | OCS-260-7037 - 220W |
| 120Vac | OCS-260-7741 - 180W | OCS-260-7743 - 200W | OCS-260-7744 - 220W | OCS-260-7745 - 220W / Available upon request | OCS-260-7746 - 220W | OCS-260-7747 - 220W |

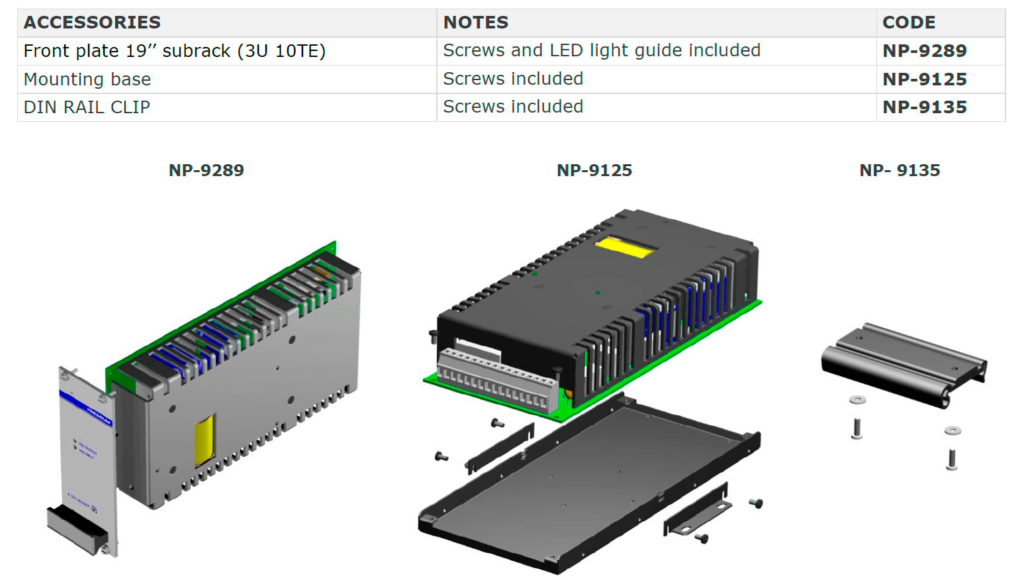

Accessories
19″ rack front panel (3U 10TE)
Mounting base
DIN rail mounting Kit

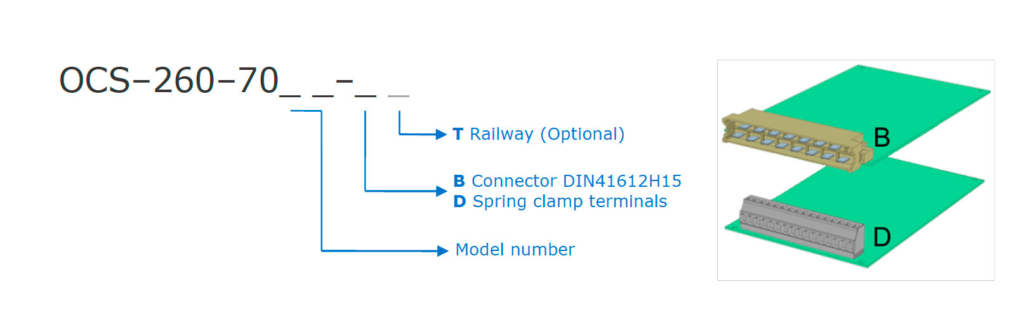

How to order
