The ODS-1500 is a series of single-phase sinusoidal DC/AC inverters that offer up to 1500W of active power with adjustable output voltage and frequency and input voltage range from 12Vdc to 110Vdc, allowing many possible input-output combinations. The output voltage can be monitored and adjusted along with other parameters via RS232 through an application available with all models.

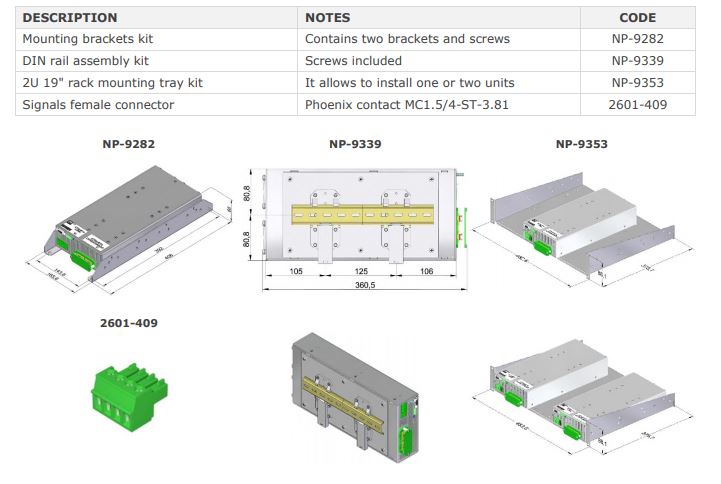

All ODS-1500 DC/AC inverters have been designed for industrial applications that require a robust and compact design and versions are available to comply with the EN50155 standard for rolling stock, with a tropicalized circuit and improved robustness. This inverter has been designed for chassis mounting and a rackmount kit is available as well. Cooling takes place through an internal fan and models offer up to 91% efficiency.
At Premium we offer the possibility to modify the ODS-1500 DC/AC inverter to each project needs to make it the best solution for each application. Flexibility and customization is our standard, so don’t hesitate to contact us to tell us about your project.
3 years for industrial version
5 years for railway version
| ODS-1500 | 12VDC 10 … 15V | 24VDC 16.8 … 30V | 36VDC 25.2 … 45V | 48VDC 33.6 … 60V | 72VDC 50.4 … 90V | 110VDC 77 … 138V |
|---|---|---|---|---|---|---|
| 120Vac | ODS-1500-7121 / 1200 W | ODS-1500-7123 / 1500 W | ODS-1500-7124* / Check availability | ODS-1500-7125 / 1500 W | ODS-1500-7126 / 1500 W | ODS-1500-7127 / 1500 W |
| 230Vac | ODS-1500-7111 / 1200 W | ODS-1500-7113 / 1500 W | ODS-1500-7114 / 1500 W | ODS-1500-7115 / 1500 W | ODS-1500-7116 / 1500 W | ODS-1500-7117 / 1500 W |
– Sine wave output voltage
– Selectable output frequency: 50/60Hz
– Adjustable output voltage
– High input-output isolation 3000Vrms
– Remote inhibit
– Remote control via RS232
– Alarm by isolated relay contacts
– Remote off opto-coupled
– Optional railway version EN50155
– Fire and smoke: EN45545-2 approved
– Efficiency up to 91%
The ODS-1500 are equipped with a maximum average power protection as well as maximum output peak current protection, protecting the unit even when an output short-circuit occurs. It also features a disable function for input under-voltage, which allows protecting the batteries from harmful discharges.
Premium manufactures all units in Barcelona under strict quality controls.
