Quick vision
– Sine wave output voltage
– Selectable output frequency: 50/60Hz
– High input-output isolation 3000Vrms
– Remote inhibit
– Railway version EN50155, RIA12 (optional)
– Fire and smoke: EN45545-2 approved
– Efficiency up to 89%
High power Industrial and Railway 450‑750W DC/AC Inverters
ODS-750
The ODS-750 is a sine wave, single-phase DC/AC inverter. The series offers 450W-750W power and is available with 120Vac or 230Vac output and a wide range of input voltages (12, 24, 36, 48, 72, and 110Vdc). With a robust design, it fits in a wide range of industrial applications that require high reliability with a compact design. A version for railway applications is also available for all models, which comply with EN50155 and RIA12.
The ODS-750 DC/AC has M3 threaded holes for chassis mounting in different positions, DIN rail or subrack mounting. The equipment is protected against reverse polarity, maximum average power and maximum peak current. It also shuts down when the operation curve limit is exceeded for over 1 second.
At Premium we offer the possibility to modify the ODS-750 DC/AC inverter to each project needs to make it the best solution for each application. Flexibility and customization is our standard, so don´t hesitate to contact us to tell us about your project.
Product warranty
3 years for industrial version
5 years for railway version
Complementary Solution

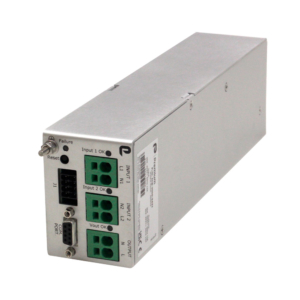

ACB-3000 Redudancy static transfer switch
SKU: ODS-750
Category: DC/AC Inverters High-Density Power
Tags: 450w, 750w, dc/ac inverters, industrial inverters, railway
| ODS-750 | 12VDC 9.5 … 15V | 24VDC 16.8 … 30V | 36VDC 25.2 … 45V | 48VDC 33.6 … 60V | 72VDC 50.4 … 90V | 110VDC 77 … 138V |
|---|---|---|---|---|---|---|
| 120Vac | ODS-750-7281 / 450 W | ODS-750-7283 / 750 W | ODS-750-7284* / Check availability | ODS-750-7285 / 750 W | ODS-750-7286 / 750 W | ODS-750-7287 / 750 W |
| 230Vac | ODS-750-7271 / 450 W | ODS-750-7273 / 750 W | ODS-750-7274 / 750 W | ODS-750-7275 / 750 W | ODS-750-7276 / 750 W | ODS-750-7277 / 750 W |
More information
Premium manufactures all units in Barcelona under strict quality controls.

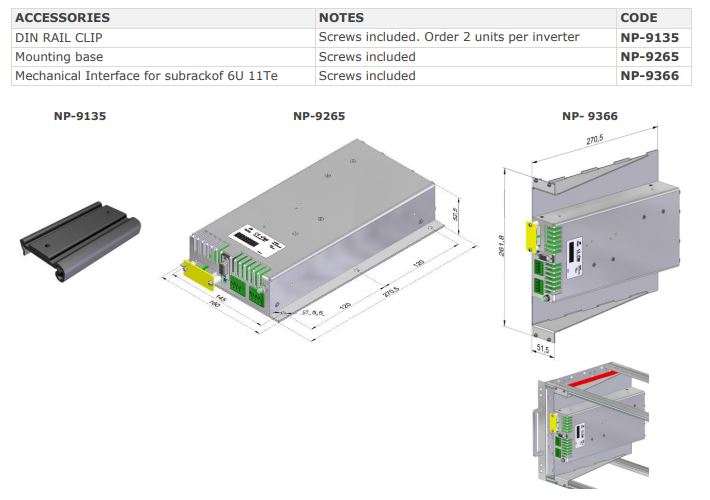

Accesories and connection options

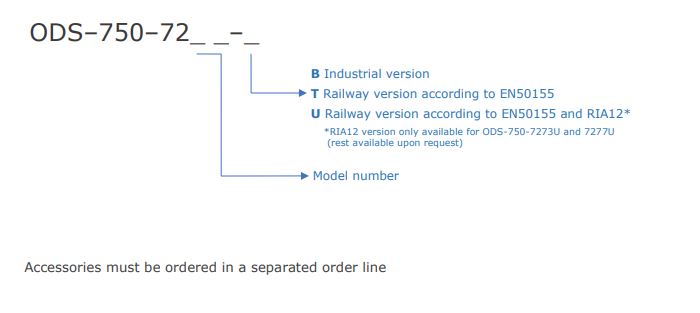

How to order
