Railway 100-140W Industrial DC/DC converters

CTS-120

The CTS-120 DC/DC converter series offer up to 140W power and comply with the EN50155 standard, suitable for industrial and railway industry. All models have remote inhibit and alarm options available.

KEY FEATURES

Designed according to EN50155
Fire and smoke: EN45545-2 approved
High input-output isolation
Standard size Eurocard 3U
Adjustable output voltage
Input voltage OK LED
Output voltage presence LED
Remote inhibit
Option: remote sensing or alarm
Efficiency up to 89%

PRODUCT WARRANTY

5 years
SKU: CTS-120 Category: Tags: , , , ,

Downloads

Data sheet 3D Drawing
CTS-12024 VIN 14.4V ... 30V36VIN 21,6V ... 47V48 VIN 28.8V ... 60V72 VIN 43.2V … 90V110 VIN 66V … 144V
5VoutCTS-120-6865 / Check availabilityCTS-120-6885 / Check availabililtyCTS-120-6869 / Check availabilityCTS-120-6873 / 100WCTS-120-6877 / Check availability
12VoutCTS-120-6866/ 120WCTS-120-6886 / Check availabililtyCTS-120-6870 / Check availabilityCTS-120-6874 / 120WCTS-120-6878 / 120W
24VoutCTS-120-6867 / 120WCTS-120-6887 / Check availabilityCTS-120-6871 / 140W CTS-120-6875/ 140WCTS-120-6879 / 140W
48VoutCTS-120-6868 / 120WCTS-120-6888 / 140WCTS-120-6872 / Check availabilityCTS-120-6876 / 140WCTS-120-6880 / 140W

Quick Vision

There are two options to choose in CTS-120 series:
1 – With remote sensing
2 – With low output voltage alarm

TERMINAL OPTIONS

Spring clamp terminal
DIN 41612 H15

More info

The CTS-120 series are DC/DC converters with a galvanic isolation between input and output. The converter operate at a fixed switching frequency and use push-pull converter topology.

There are two options to choose:

  • with remote sensing
  • with low output voltage alarm

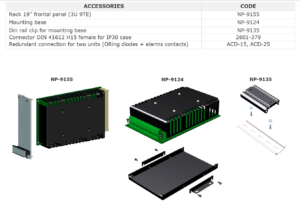

Accessories

accessories_cts120

19″ rack front panel (3U 9TE)
DIN rail mounting Kit
Mounting base
Female cage clamp terminal DIN connector
Redundant connection

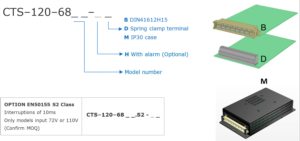

How to order

order_cts120
