Industrial 1960W Redundant DC/DC converter
CKR-2000

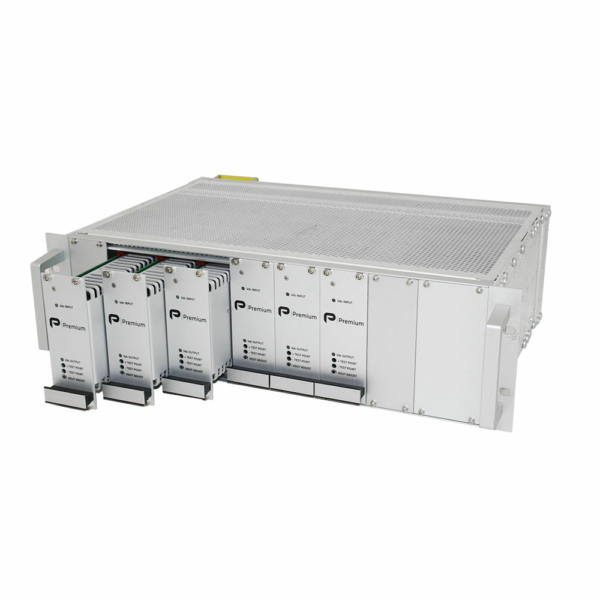

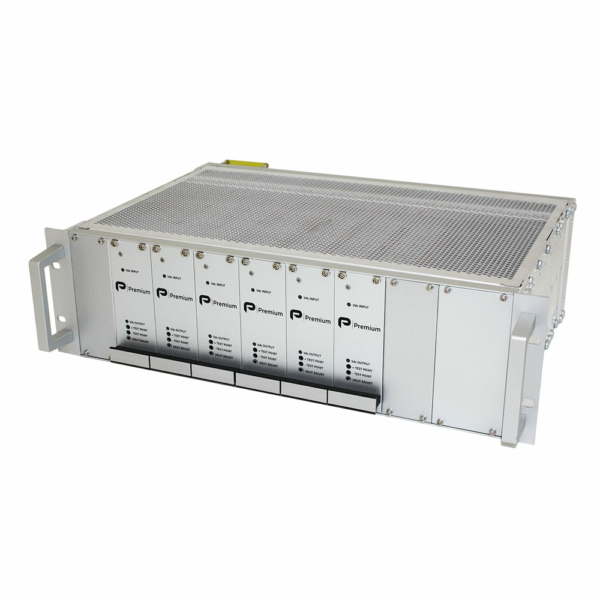

The CKR-2000 series is designed for applications where a high degree of reliability is required. It consists of modular DC/DC converters that allow a set of up to 8 modules of 240W or 280W installed in a subrack of 19″. It can be configured according to needs of outputs, power and level of redundancy.
KEY FEATURES
Modules series CRS-240 / CTS-240
Module hot swap
Input and/or output redundancy
Oring by diodes
High input-output isolation
Module Input voltage OK LED
Module output voltage presence LED
Module output voltage test point
Output failure alarm by relay contacts
Railway version EN50155
PRODUCT WARRANTY
3 years for Industrial version
5 years for Railway version
SKU: CKR-2000
Category: DC/DC converters
Tags: 1960w, dc/dc converters, industrial converters, railway, redundant

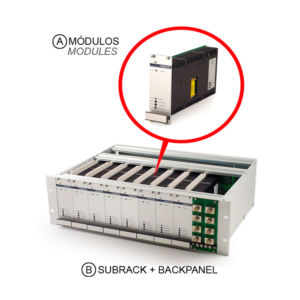

| CKR-2000 | B - SUB-RACK | B - SUB-RACK TOTAL POWER | B - SUB-RACK REDUN. N+1 | MÓDULOS A / A MODULES 48VIN (36V ÷ 60V) | MÓDULOS A / A MODULES 110VIN (77V ÷ 144V) |
|---|---|---|---|---|---|
| 12Vout | NP-9176 | 1920W | 1680W | NP-9179 240W | NP-9182 280W |
| 24Vout | NP-9177 | 2240W | 1960W | NP-9180 280W | NP-9183 280W |
| 48Vout | NP-9178 | 2240W | 1960W | NP-9181 280W | NP-9184 280W |
More info
The CKR-2000 series is a modular DC/DC converter consisting of a set of up to 8 modules of 240W or 280W, according to the model, installed in a 19″ subrack internally connected in redundant mode.
The unit allows 1920W or 2240W to be supplied without redundancy, 1680W or 1960W with N+1 redundancy, 1440W or 1680W with N+2 redundancy, etc.
The equipment comes with two input lines, each of which powers a set of four modules, providing line redundancy of up to 960W or 1120W.
Accessories
Blind front plate for unused slots
