GENERAL FEATURES
– MTBF400kh+@40ºC
– Extreme reliability
– Easy install: wall mount, DIN rail, rack mount
There are two connectint (terminal) options:
Spring clamp terminal
DIN 41612 H15
PremiumIndustrial 180-280W DC/DC converters
CRS-240
The CRS-240 are DC/DC converters up to 280W power with multiple input-output combinations for industrial applications. They also offer up to 92% efficiency.
KEY FEATURES
Switching frequency: 140KHz
High input-output isolation
Standard size Eurocard 3U
Adjustable output voltage
Remote sensing
Input voltage OK LED
Output voltage presence LED
Remote inhibit
Efficiency up to 92%
PRODUCT WARRANTY
3 years
| CRS-240 | 12VIN 9V ... 15V | 24VIN 18V ... 30V | 48VIN 36V ... 72V | 72VIN 50,4V ... 90V | 110VIN 77V ... 144V | 220VIN 165V ... 275V |
|---|---|---|---|---|---|---|
| 5Vout | CRS-240-6351 / 180W | CRS-240-6355 / 180W | CRS-240-6359 / 180W | CRS-240-6363 / 180W | CRS-240-6367 / 18W | CRS-240-6371 / Check availability |
| 12Vout | CRS-240-6352/ 180W | CRS-240-6356 / 240W | CRS-240-6360 / 240W | CRS-240-6364 / 240W | CRS-240-6368 / 240W | CRS-240-6372 / 240W |
| 24Vout | CRS-240-6353 / 200W | CRS-240-6357/ 240W | CRS-240-6361 / 280W | CRS-240-6365 / 280W | CRS-240-6369 / 280W | CRS-240-6373 / 280W |
| 48Vout | CRS-240-6354 / 200W | CRS-240-6358 / 240W | CRS-240-6362 / 280W | CRS-240-6366 / 280W | CRS-240-6370 / 280W | CRS-240-6374 / 280W |
More info
CRS-240 series is a DC/DC converter with a galvanic isolation between input and output. It operate at a fixed switching frequency and use push-pull converter topology.
For maximum regulation, the remote sensing terminals can be connected to the load. This will allow a power cable voltage drop of up to 0.3 V on each cable to be offset.

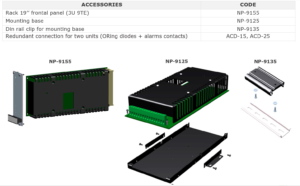

Accessories
19″ rack front panel (3U 9TE)
Mounting base
DIN rail mounting Kit
Redundant connection
