Quick Vision
FEATURES
MTBF1M+@40ºC
Extreme reliability
Easy install: wall mount, DIN rail, rack mount
TERMINAL OPTIONS
There are two connecting options:
• DIN-41612-H15 connector
• Spring clamp terminals.

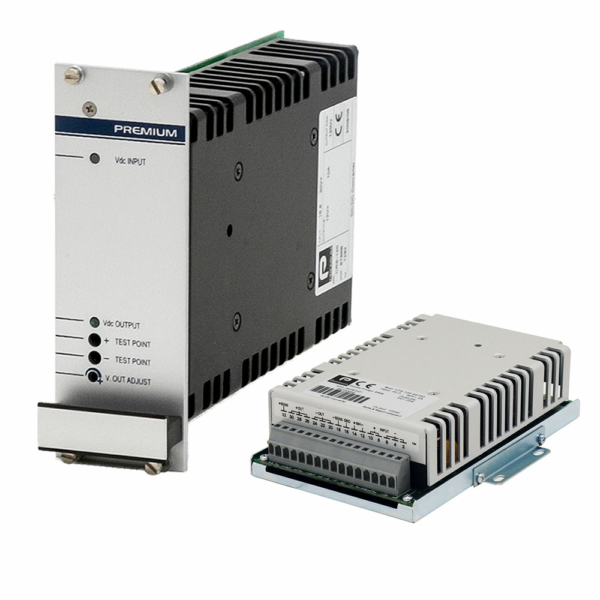

Industrial 100 -140W DC/DC converters
CRS-120
The CRS-120 series consists of DC/DC converters up to 140W with multiple input/output combinations. Its robustness allows its use in all types of demanding industrial applications.
KEY FEATURES
- Switching frequency: 140KHz
- High input-output isolation
- Standard size Eurocard 3U
- Adjustable output voltage
- Remote sensing
- Input voltage OK LED
- Output voltage presence LED
- Remote inhibit
- Efficiency up to 89%
PRODUCT WARRANTY
3 years
SKU: CRS-120
Category: DC/DC converters
Tags: 100w, 140w, converter, dc/dc converters, industrial converters
| CRS-120 | 12VIN 9V ... 15V | 24VIN 18V ... 30V | 48VIN 36V ... 72V | 72VIN 50,4V ... 90V | 110VIN 77V ... 144V | 220VIN 165V ... 275V |
|---|---|---|---|---|---|---|
| 5Vout | CRS-120-6761 / Check availability | CRS-120-6765 | CRS-120-6769 100W | CRS-120-6773 / Check availability | CRS-120-6777 / 100W | CRS-120-6781 / Check availability |
| 12Vout | CRS-120-6762 / 100W | CRS-120-6766 / 120W | CRS-120-6770 / 120W | CRS-120-6774 / 120W | CRS-120-6778 / 120W | CRS-120-6782 / Check availability |
| 24Vout | CRS-120-6763 / 120W | CRS-120-6767 / 120W | CRS-120-6771 / 140W | CRS-120-6775 / 140W | CRS-120-6779/ 140W | CRS-120-6783 / 140W |
| 48Vout | CRS-120-6764/ 120W | CRS-120-6768 / 120W | CRS-120-6772 / 140W | CRS-120-6776 / Check availability | CRS-120-6780 / 140W | CRS-120-6784 / Check availability |
More info
The CRS-120 series are DC-DC converters with a galvanic isolation between input and output. The converters operate at a fixed switching frequency and use push-pull converter topology. The device is also protected against reverse polarity input voltage, and the input fuse blows if an improper connection is made.

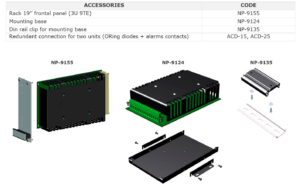

Accessories
19″ rack front panel (3U 9TE)
Mounting base
DIN rail mounting Kit
Redundant connection
How to order
Accessories must be ordered in a separated order line
