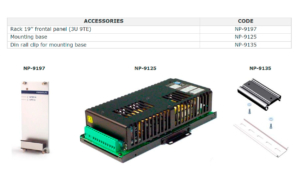

Accessories
19″ rack front panel (3U 9TE)
Mounting base
DIN rail mounting Kit
200W DC uninterruptible power supply battery chargers
ECS-200
The UPS series (uninterruptible power supply systems) ECS-200 offer up to 230W of power and have the possibility of battery disconnection by low battery. Its assembly is simple in different options it offers (surface, DIN rail and rack).
KEY FEATURES
Battery cut off when battery low
Battery constant current charging
4 Selectable current charging levels
Step mains to battery without voltage dips
Independent alarms of supply fail and battery low
PRODUCT WARRANTY
3 YEARS
SKU: ECS-200
Categories: AC/DC Battery chargers, AC/DC UPS
Tags: 200w, ac/dc battery chargers, ac/dc UPS, power supply, uninterruptible
| ECS-200 | Nominal Voltage | Maximum Power | Maximum Rectifier Current | Maximum Battery Current | Battery Floating Voltage | Battery Cutt off Voltage | Charging Current Selection I1 | Charging Current Selection I2 | Charging Current Selection I3 | Charging Current Selection I4 |
|---|---|---|---|---|---|---|---|---|---|---|
| ECS-200-5183 | 12V | 200W | 14.7A | 20A | 13.6V | 10V | 2.0A | 2.4A | 4.8A | 9.6A |
| ECS-200-5187 | 24V | 225W | 8.3A | 15A | 27.2V | 20V | 1.0A | 1.2A | 2.4A | 4.8A |
| ECS-200-5189 | 48V | 230W | 4.2A | 6A | 54.4V | 40V | 0.44A | 0.6A | 1.2A | 2.4A |
How to order
