500W DC UPS – Guaranteed power during unexpected AC cuts
EDS-500

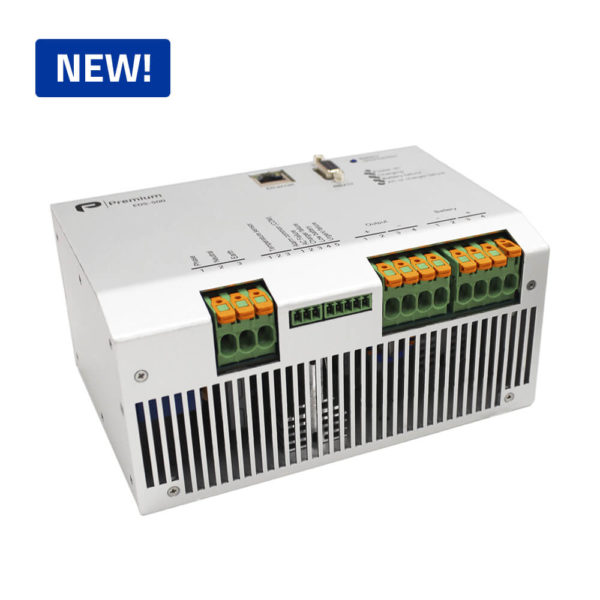

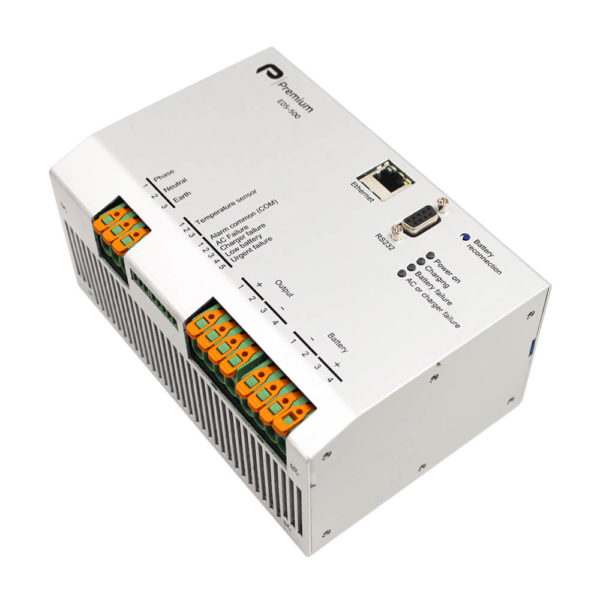

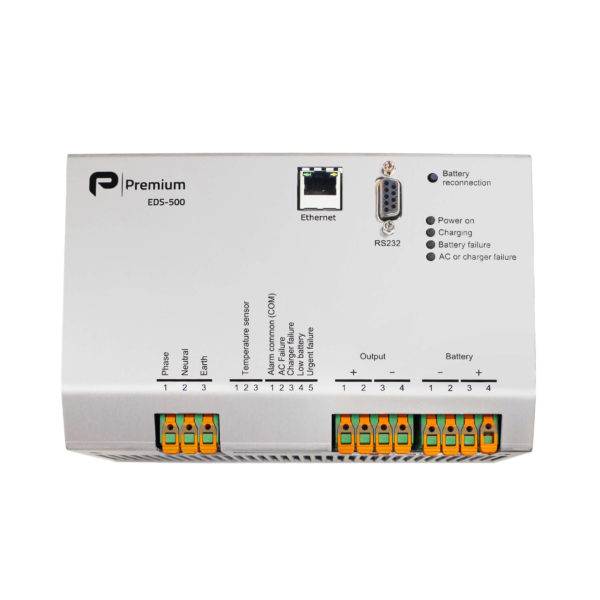

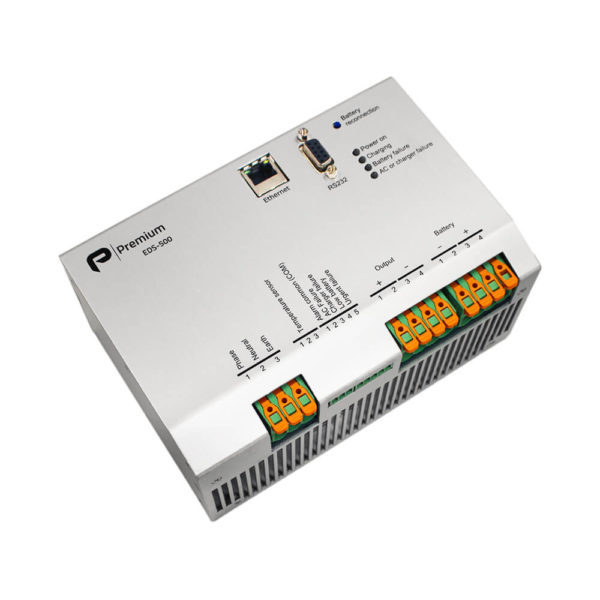

The EDS-500 is a 500W battery charger that allows feeding DC loads through the charger´s batteries even if there is an AC mains cutdown. This UPS (uninterruptible power supply) series is perfect for charging lead-acid batteries of 12V, 24V and 48V and includes internal battery cut off when battery is low. Other battery types available under request.
The EDS-500 works with universal input (110-230Vac) and is available with different output combinations. This UPS series has been designed to work in applications such as 4.0 industry, Internet of Things and smart grids, and is presented in a very compact design whilst offering a reliable and efficient solution to minimize the loss of power in a robust case.
Looking for an EDS-500 with different technical features? Tell us your challenge and we’ll make it ours from now on!
Product warranty
3 years
| EDS-500 | INPUT VOLTAGE RANGE | NOMINAL OUTPUT VOLTAGE | MAXIMUM OUTPUT POWER | MAXIMUM OUTPUT CURRENT | MAXIMUM OUTPUT PEAK CURRENT FROM BATTERY |
|---|---|---|---|---|---|
| EDS-500-5243 | 90 … 264Vac | 12V | 500W | 36.7A | 50A 30s |
| EDS-500-5247 | 90 … 264Vac | 24V | 500W | 18.4A | 30A 30s |
| EDS-500-5249* | 90 … 264Vac | 48V | 500W | 9.19A | 15A 30s |
| EDS-500-5251* | 90 … 264Vac | 110V | 500W | 4A | 6.5A 30s |
