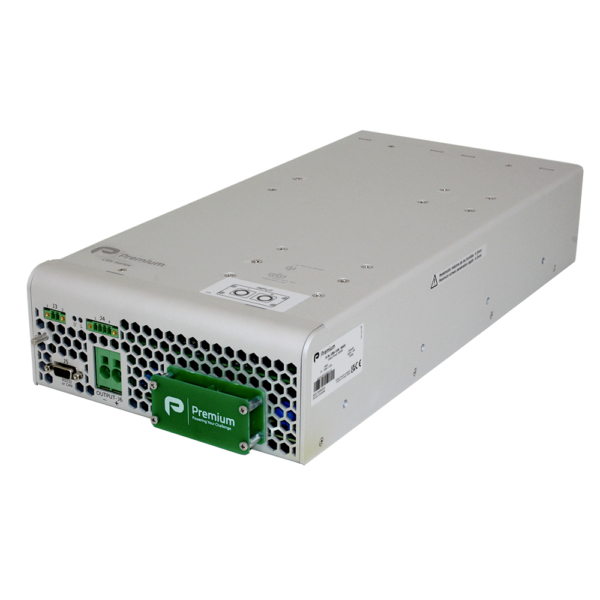

Premium PSU’s CBS-10K is a single output DC/DC converter that provides a peak power of up to 10kW during 40 seconds with multiple input-output voltage combinations, which makes it the perfect fit for a wide range of applications that require high power conversion in a compact and light design.
With a 6kW power average, this converter series offers 500Vdc output and can be variated up to 700Vdc under request and have been developed with SiC Technology, which gives them a high power density.
The CBS-10K has been designed according to rolling stock standards and is the perfect fit to start up the diesel engine in hybrid diesel-electric trains. It will allow train manoeuvre at low speed when catenary power is not available, supplying the rectifier to operate as an inverter when starting the engine.
Looking for a CBS-10K with different technical features? Tell us your challenge and we’ll make it ours from now on!
5 years for railway version
3 years for industrial version
– High input-output isolation 5000 Vrms
– Remote off opto-coupled
– Alarm by isolated relay contacts
– Remote control via RS232
– CAN BUS (optional)
– Parallelable output (optional)
– Railway version EN50155
– Fire and smoke: EN45545-2 approved
– Up to 10 kW during 40s
The CBS-10K series consists of DC/DC converters, with a galvanic isolation between input and output, operating at fixed switching frequency.
The unit can deliver up to 6 kW average and up to 10 kW during 40 s (see data table) being protected against overload and short-circuits.
The unit includes an ORing diode at the output to decouple it from lines up to 2 kV
Use cables of adequate cross-section to connect inputs and outputs. The following table lists the maximum currents and the minimum cross-sections for the cables used for each power connection.
